| ブランド名: | AHONY/OEM |
| モデル番号: | eGo S75w |
| MOQ: | 10個 |
| 価格: | $36/pieces 2-50 pieces |
| 支払条件: | D/A、D/P、T/T、ウェスタンユニオン、マネーグラム |
| 供給能力: | 3000枚/月 |
|
Model No. |
eGo S75W |
|
Product Name |
Semi-flexible Solar Panel |
|
Maximum Power[Wp] |
75w |
|
Solar Cell |
Longi HPBC solar cells |
|
Cell Efficiency |
25.8% |
|
Size[mm] |
540*625*3mm |
|
Max Power Voltage Vmp[V] |
22 |
|
Max Power Current Imp[A] |
3.41 |
|
Open Circuit Voltage Voc[V] |
25.74 |
|
Short Circuit Current Isc[A] |
3.68 |
|
Net.Weight[kg] |
1.5 |
|
NOCT[℃] |
45±2 |
|
Operating Temperature[℃] |
-40/+85 |
|
Temperature Coefficient Pmax[%/℃] |
-0.4 |
|
Temperature Coefficient Voc[[%/℃] |
-2mV |
|
Temperature Coefficient Isc[[%/℃] |
0.05 |
|
Maximum System Voltage[V] |
100 V |
|
Cables and Connectors |

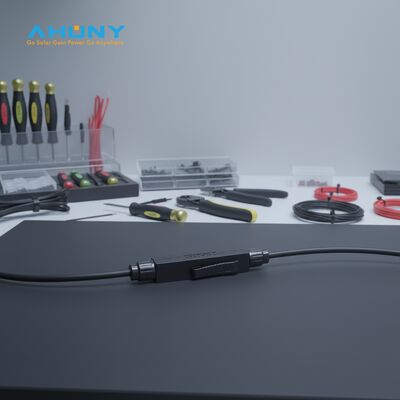

Jbox IP67, 0.9m cable+MC4 |
Deeple customization:
l Logo customization:
Label Logo Customization: Put your company logo on the label.
Logo Lamination: Laminnate your company logo in the front of the panel.
l Packaging customization:
Print your company logo on the packaging carton box.
Gifted box.
l Maximum power customization:
Power range from 1-650W.
l Type customization:
We could make standard type, bificial type, and provide color and frameless type.
Sample service:
We encourage our customers to try our products! Maximum number of samples per request: 1-9 pieces.
Company Profile:
AHONY POWER was founded in Shenzhen, southest China nearby Hongkong, Dongguan,Huizhou. Our team have more than 13 years solar experience, including producing, marketing, R&D. AHONY owns 4 official issued solar patents,1 of which is invention patent. We've managed under ISO quality system,products are certified by CE, ROHS, SGS, IEC. Product range is: ETFE PET fibreglass flexible solar panel,semi rigid solar module,glass solar panel, foldable solar kit.Both regular cells and USA SunPower cells. For every product offered by AHONY, we have strict producing process,quality inspection process and testing process. AHONY is dedicated to clean energy-solar technology innovation, ultralight solar panel technology, environmental friendly solar products, lighting products, power products etc.
Contact:
Email: sales12@ahonypower.com
Whatsapp: +86 18677451260
